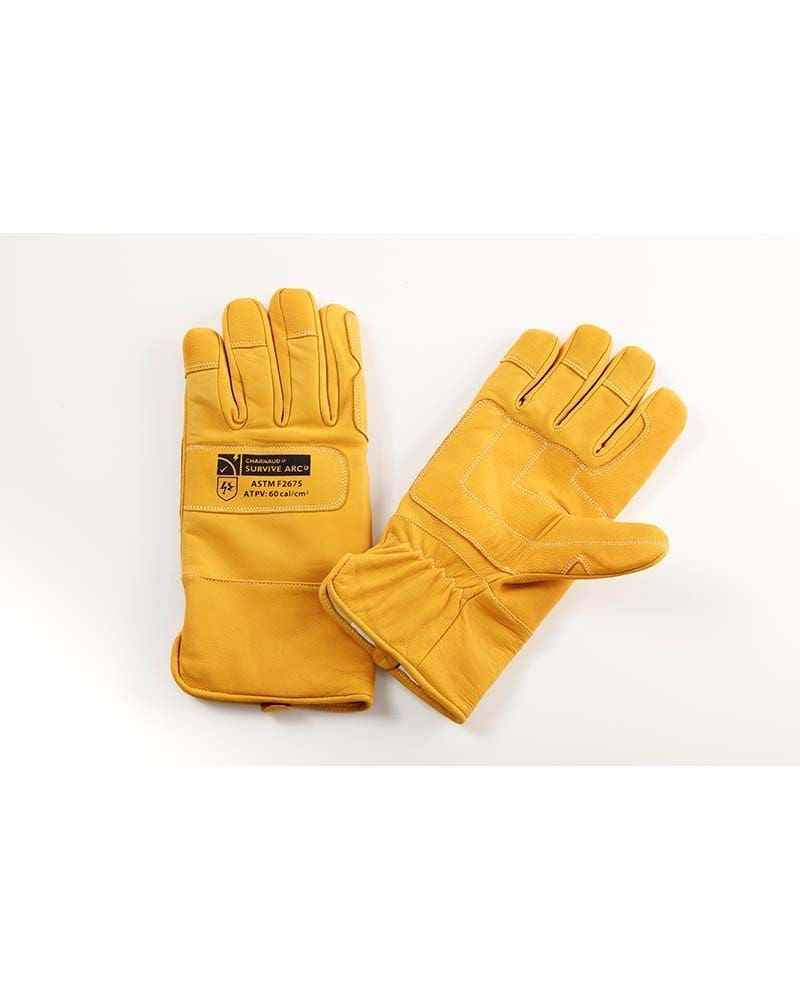

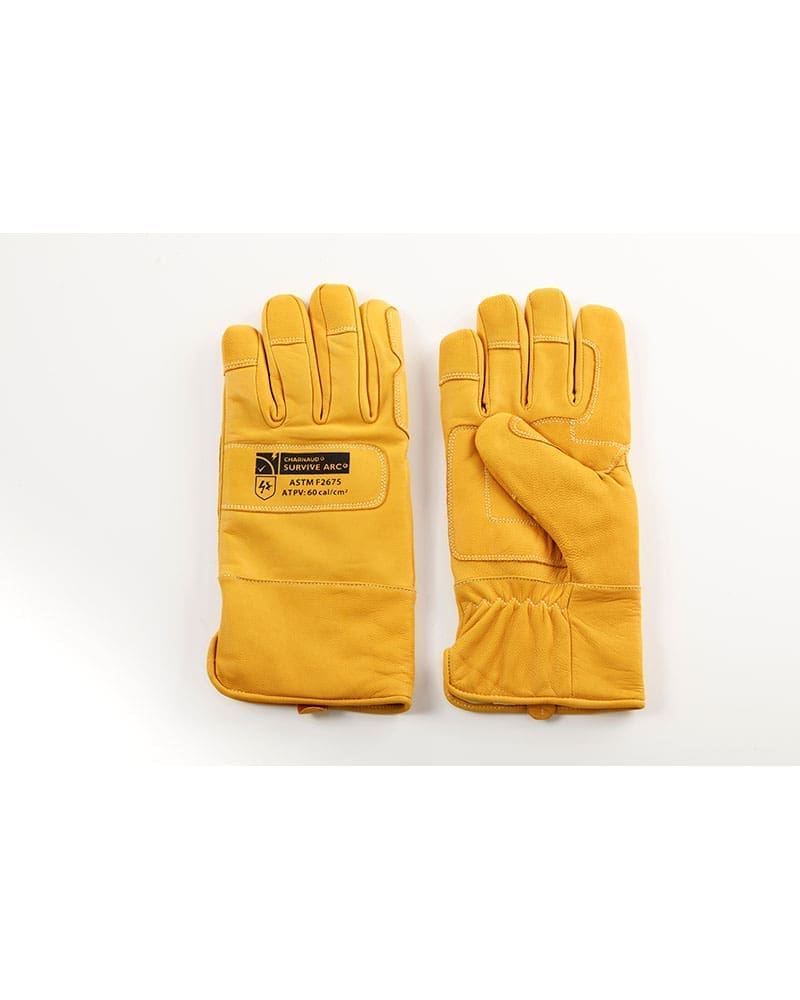

SURVIVE-ARC® Switching Mitts, ATPV 60 cal/cm² CAT 4


6GX1- 6GX5







CHARNAUD® SURVIVE-ARC® Hand protection.

  • Switching mitts with inner glove stitched in for protection against arc flash, hot or burning
    transformer oil and corrosive liquids. Extended cuff for extra protection.
  • Must be worn as part of a complete 60 cal/cm² switching suit.

Style Number:  6GX1 – 6GX5

Colour: Orange.

Size: S – 2XL.

Application: Arc flash protective work wear for the electrical industry, including the presence of hot/burring transformer oil and corrosive liquids

Hazards assessments: Thermal effects from arc flash and presence of flammable/hot transformer oil and corrosive liquids.


  • Fabric: FR liquid proof outer shell
  • Inner glove: OG glove
  • Liquid and chemical proof FR/AR outer fabric with sealed seams.
  • Exceptional insulation from high heat loads.
  • Thermal liner has excellent breath-ability with moisture/perspiration absorption and dissipation.
  • Complete “head-to-foot” protection available: hood, jacket, trousers, mitts and footwear.
  • Water washable.


  • NFPA 70E
  • IEC 61482-2
  • ATPV¹: 66 cal/cm²; HAF²: 95

Arc flash clothing is intended to provide protection from the thermal effects of arc flash and this product must be used as part of an appropriate set of PPC and PPE to protect against the hazards of arc flash. This product complies with standards that are intended to protect against arc flash in most situations that arise during normal use. There may be exceptional cases in which even the best protection is not enough to prevent the harm caused by arc flash or the related effects, although the product meets statutory and industry specifications, the use of this product does not guarantee that the product will provide complete protection in those exceptional cases. If you are in doubt or do not fully understand these limitations, contact the manufacturer for full information. The product may be returned to the supplier if you are not willing to accept a product that is subject to the limitations set out above.

¹ATPV: Arc Thermal Performance Value. The higher the value, the more insulated the user is from second degree burn.
2HAF: Heat Attenuation Factor. The higher the HAF%, the more heat is blocked by the fabric.

*Additional testing
Information available on request.

WARNING: Safety precaution
Electrical switching where transformer oil is a potential safety hazard must employ two workers for the task, working in a buddy system. The switching worker inside the arc flash protective boundary must be clothed in this Survive-ARC® Hot Oil Arc Flash Protective Suit. The second worker (buddy) clothed in full body FR PPC and PPE and armed with a powder fire extinguisher, must be on standby outside the arc flash protective boundary at a safe distance from a potential arc with hot oil splash – this can involve standing behind a protecting screen. In the event of an electric arc flash, the buddy worker must as soon as possible, but within 10 seconds, extinguish any flames that might be on the arc flash suit of the worker that has performed.
