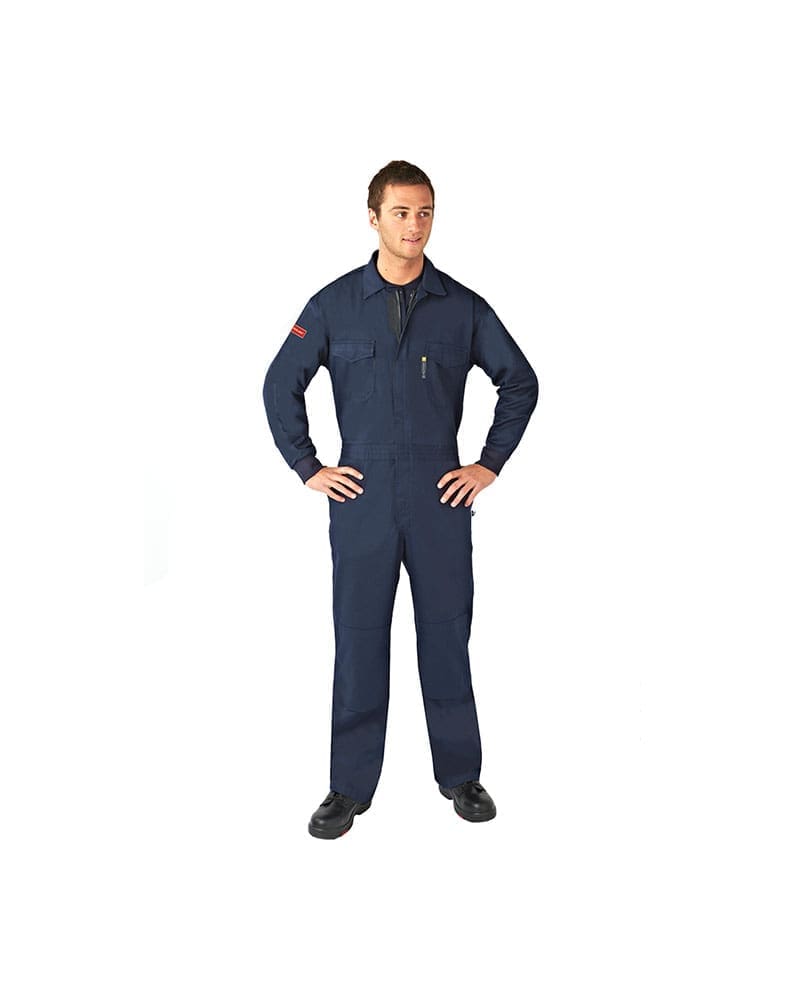

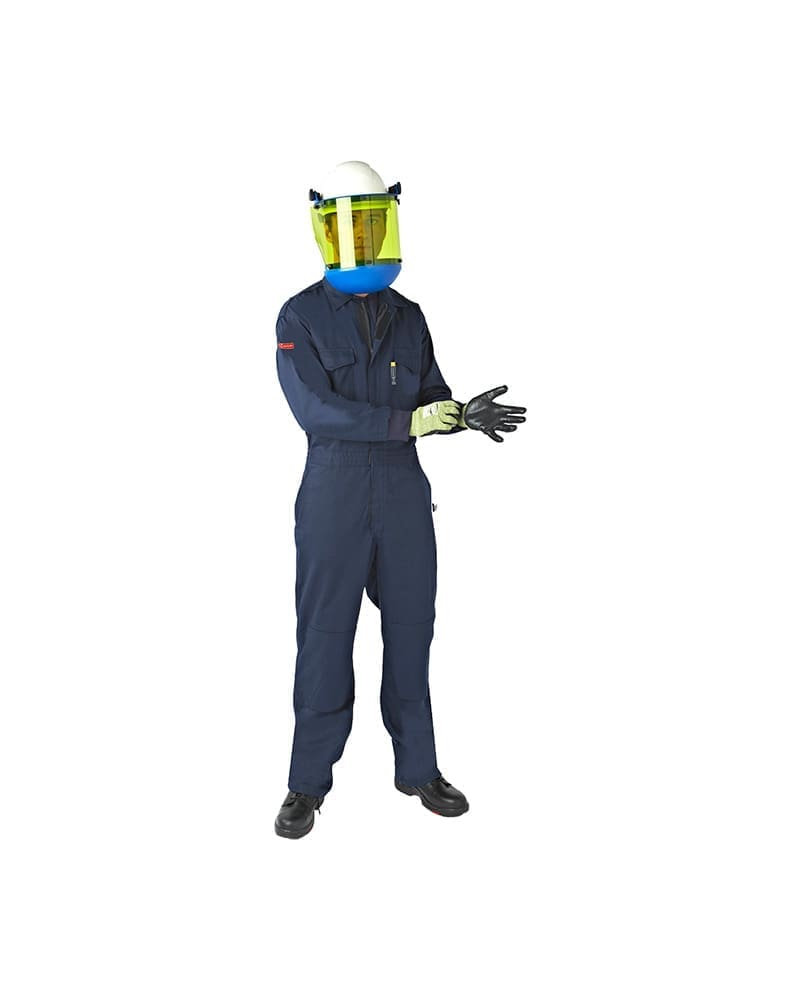

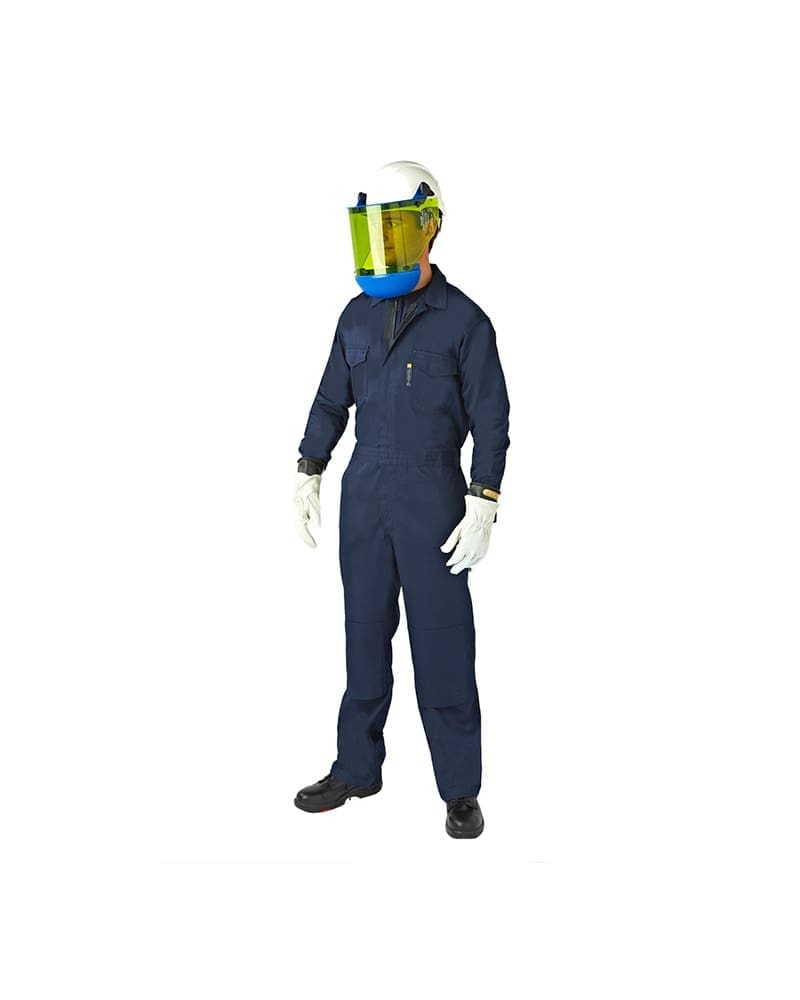

SURVIVE-ARC® COVERALL ONE PIECE, ATPV 8,7 CAL/CM² CAT 2

Description

Two slanted side entry pockets and two breast pockets with flap and flame resistant (FR) Velcro® closure.
One right back pocket with flap and FR Velcro® closure.
FR 2-way zip front closure.
Long sleeves with knitted cuffs.
Half elastic waist and standard collar.
Option:
• FR reflective tape around biceps, legs just below knees and cross
on back.
• Company embroidery above left breast.

STYLE NUMBER SASC/7 – 6UKA1 – 6UKA96.

COLOUR: Navy blue.

SIZE: S- 5XL; 87cm – 152cm; 34” – 60”.

MATERIALS: Fabric: Flame-resistant (FR) and arc rated (AR).

APPLICATION: Arc flash protective work wear for the electrical industry.

HAZARD ASSESSMENTS:

Thermal effects from electric arc flash, flames and flash fires.
FEATURES Flame-resistant for the life of the garment.
Water washable.
Excellent breathability; absorbs perspiration and moisture.
Cotton comfort..

STANDARDS Fabric and/or garment:
NFPA 70E
ASTM F2621
SANS 724: 2010
IEC 61482-2
CE certified.
ATPV¹: 8.7cal/cm²; HAF²: 74.2

WARNING: READ BEFORE USING THIS PRODUCT
Arc flash clothing is intended to provide protection from the thermal effects of arc flash and this product must be used as part of an appropriate set of PPC and PPE to protect against the hazards of arc flash. This product complies with standards that are intended to protect against arc flash in most situations that arise during normal use. There may be exceptional cases in which even the best protection is not enough to prevent the harm caused by arc flash or the related effects, although the product meets statutory and industry specifications, the use of this product does not guarantee that the product will provide complete protection in those exceptional cases. If you are in doubt or do not fully understand these limitations, contact the manufacturer for full information.

¹ATPV: Arc Thermal Performance Value. The higher the value, the more insulated the user is from second degree burn.

2HAF: Heat Attenuation Factor. The higher the HAF%, the more heat is blocked by the fabric.

DISCLAIMER
CHARNAUD® accepts no liability should garments not be laundered in strict accordance with the wash
care instructions provided.



Product Features

Flame-resistant for the life of the garment.
Water washable.
Excellent breathability; absorbs perspiration and moisture.
Cotton comfort.
