SURVIVE-ARC® Switching hood 100 cal/cm2 CAT 4

SURVIVE-ARC® Switching hood 100 cal/cm2 CAT 4

Application: Work wear for the electrical industry.

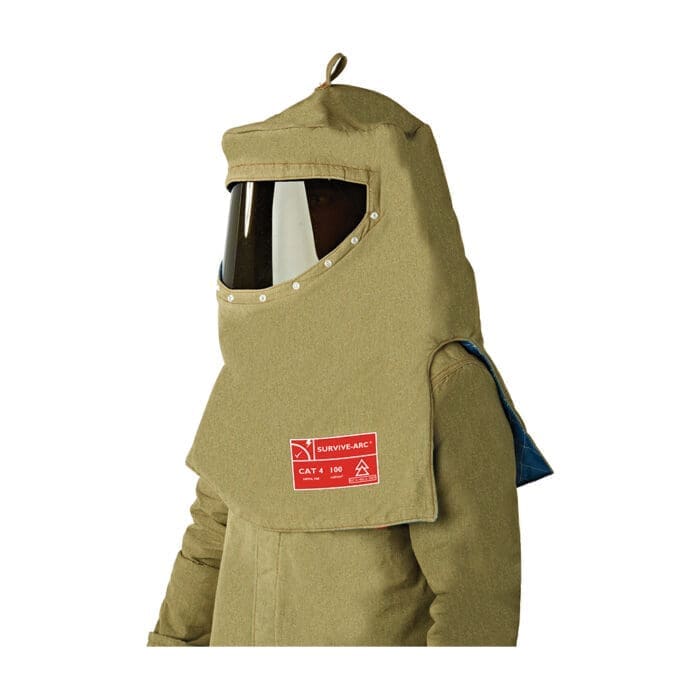

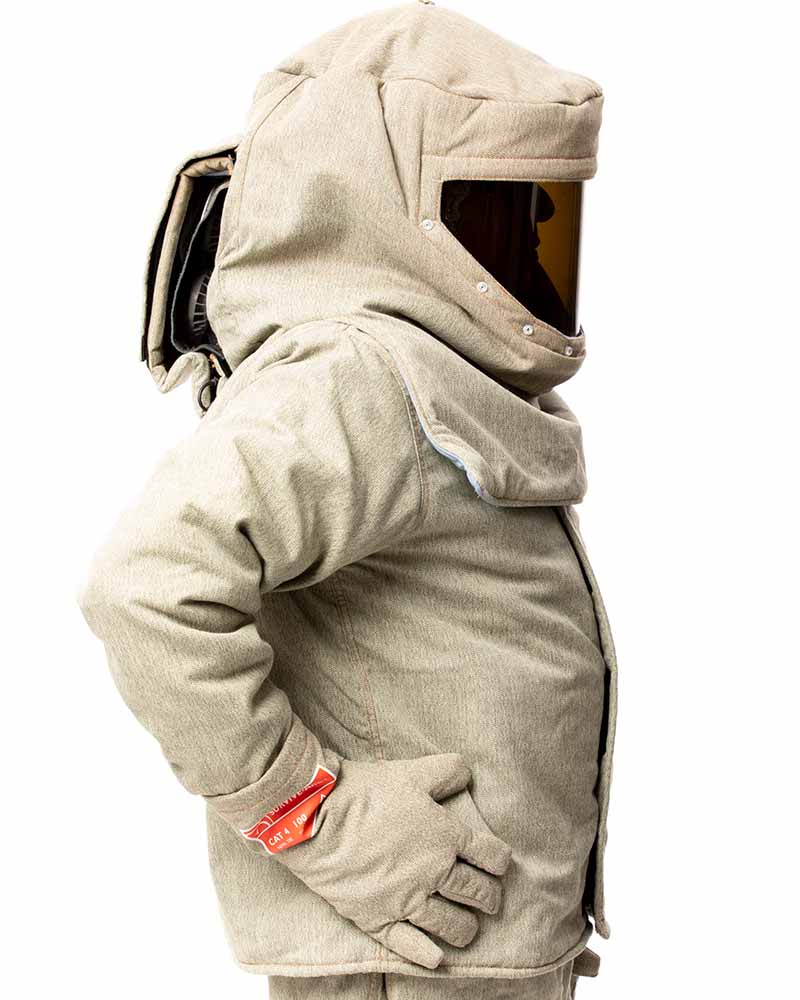

Survive-ARC® arc flash switching hood, CAT 4, ATPV 100 cal/cm2. Shaped one piece arc flash switching hood with internal dielectric hard hat and large viewing protective face shield. Optional: Ventilated hood. Switching suit: See separate product data sheet.


ColourHood: Olive; Lens: Green
SizeOne size fits all
  • Fabric: Layered 754 g/m2.
  • Outer: Para-aramid, CF, Novoloid.
  • Inner: Melamine, Para-aramid, Meta-aramid.
  • Thread: Aramid.
  • Face shield: ArcShield Dual pane, true colour green, anti-fog.
Product Standards
  • Fabric: NFPA 70E; IEC 61482-1-1; ASTM F1959; ASTM F1506
  • Garment: ASTM F2178; SANS 724 and CE 0339.
  • ATPV1: 100 cal/cm2; HAF2: 97.7 %
Hazard AssessmentsThermal effects from electric arc flash, flames and flash fires.
Product CommentsWARNING: READ BEFORE USING THIS PRODUCT Arc flash clothing is intended to provide protection from thermal effects of arc flash and this product must be used as part of an appropriate set of PPC and PPE to protect against the hazards of arc flash. This product complies with standards that are intended to protect against arc flash in most situations that arise in normal use. There may be exceptional cases in which even the best protection is not enough to prevent the harm caused by arc flash or the related effects and, although the product meets statutory and industry specifications, the use of this product does not guarantee that the product will provide complete protection in those exceptional cases. If you are in doubt or do not fully understand these limitations, contact the manufacturer for full information. The product may be returned to the supplier if you are not willing to accept a product that is subject to the limitations set out above. The normal life span of the Arc Shield is one (1) year of outdoor service and two (2) years of indoor service. The Arc Shield should be replaced timeously to ensure optimal performance and safety. 1ATPV: Arc Thermal Performance Value. The higher the value, the more insulated one is from second degree burn. 2 HAF: Heat Attenuation Factor. The higher the HAF%, the more heat is blocked by the fabric.

Product Features

  • Lightest 100 cal/cm2 suit available on the world market.
  • Guaranteed flame-resistant for the life of the garment.
  • Water washable.
  • Optional: large heavy duty carry bag or back pack for Survive-ARC® protective clothing and accessories breath-ability and moisture/sweat absorption and dissipation.
