SURVIVE-ARC® Shield Kit 25 cal CAT 2 grey visor, chin guard and blue cap bracket

SURVIVE-ARC® Shield Kit 25 cal CAT 2 grey visor, chin guard and blue cap bracket

SURVIVE-ARC® Shield Kit 25 cal CAT 2 grey visor, chin guard and blue cap bracket

SURVIVE-ARC® CAT 3, Transparent Headgear Kit, 25cal/cm²

STOCK CODE

SAHO2B

COLOUR

Face shield: Grey.
Chin protector: Grey.
Bracket: Blue

SIZE

One size fits all



Description

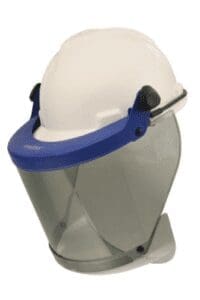

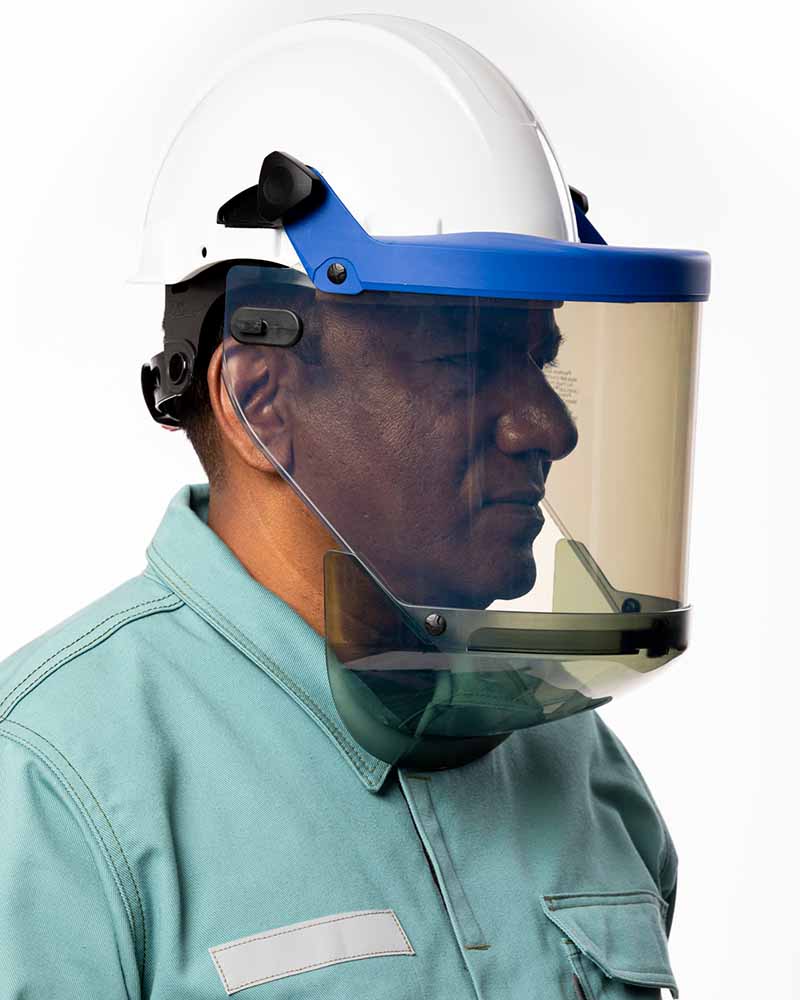

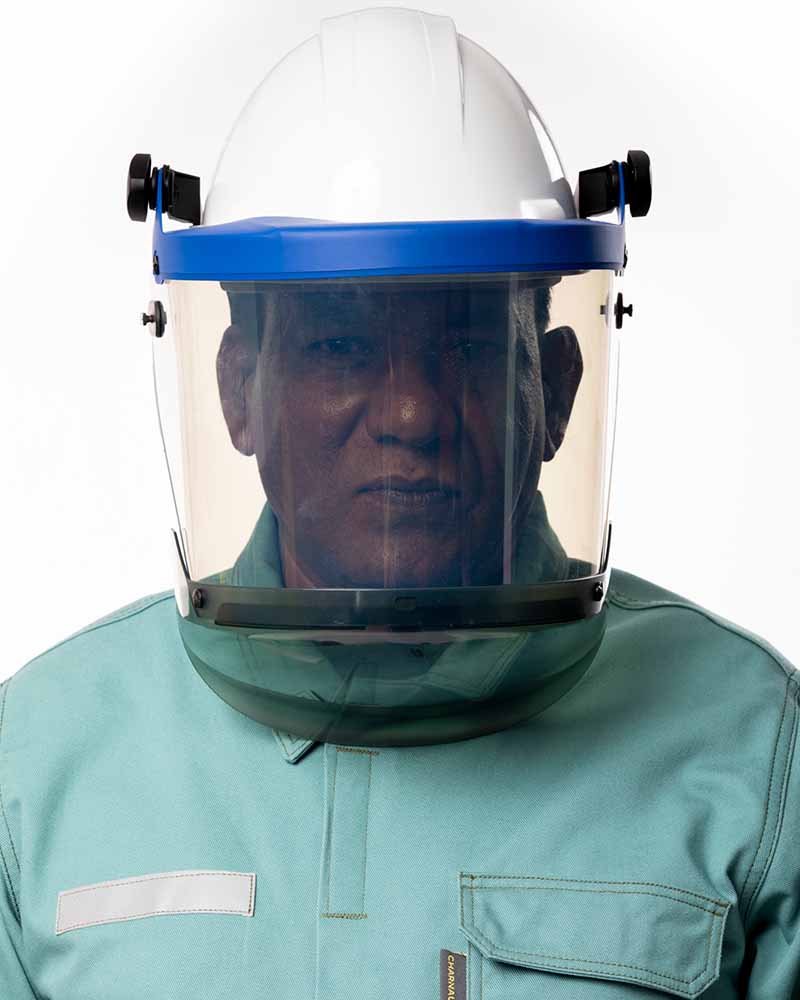

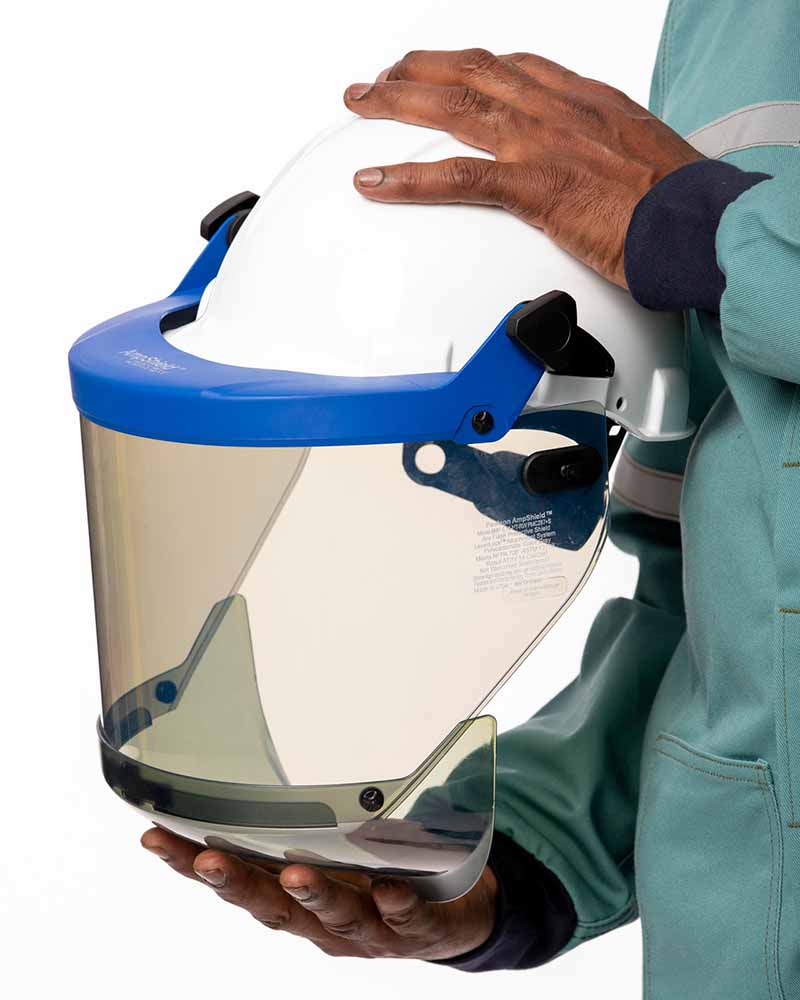

Headgear kit, ATPV 25 cal/cm² CAT 3.

Consisting of three components that must be used together as a KIT to achieve the arc rating indicated:
transparent face shield with improved optical correctness, a bracket, and a chin protector.
Options:
• Dielectric hard hat not included, see separate Product Information sheet.
• Cap bracket available for slotted hard hats and universal bracket for slotted and non-slotted hard hats.

STYLE NUMBER: SAH02B

COLOUR:

Face shield: Grey.
Chin protector: Grey.
Bracket: Blue

SIZE: One size fits all.

MATERIALS:

Face shield/chin protector: Plastic/Chemical alloy (patented).
Slotted cap bracket: Nylon.

APPLICATION Arc flash protective work wear for the electrical industry.

HAZARD ASSESSMENTS:
Thermal effects from electric arc flash, flames, and flash fires.

FEATURES:

The face shield offers improved optical correctness, and anti-fog technology.
Excellent field of view and ergonomic assembly that is convenient for the user.
Anti-fog on both sides.
The chin protector provides additional protection for the chin and neck areas.
Dielectric and high temperature resistant.

STANDARDS Fabric and/or garment:
EN 166.
ANSI Z87.1.
GS-ET-29 (Arc Protection Class 2).
ASTM F2178 (ATPV 25 cal/cm²).
NFPA 70E PPE-Category 2

WARNING: READ BEFORE USING THIS PRODUCT

Arc flash clothing is intended to provide protection from the thermal effects of arc flash and this product must be used as part of an appropriate set of PPC and PPE to protect against the hazards of arc flash. This product complies with standards that are intended to protect against arc flash in most situations that arise during normal use. There may be exceptional cases in which even the best protection is not enough to prevent the harm caused by arc flash or the related effects, although the product meets statutory and industry specifications, the use of this product does not guarantee that the product will provide complete protection in those exceptional cases. If you are in doubt or do not fully understand these limitations, contact the manufacturer for full information.

¹ATPV: Arc Thermal Performance Value. The higher the value, the more insulated the user is from second-degree burns.

2HAF: Heat Attenuation Factor. The higher the HAF%, the more heat is blocked by the fabric.

Do not leave AMPShield® in direct sunlight for long periods of time. Do not place it next to the heat source. Do not use it if cracked or broken. Do not use it if it has been in an arc flash. AMPShield® is made from high-quality materials by leading manufacturing processes and designed for long-term use (5 years) provided the relevant care and storage instructions have been followed.

DISCLAIMER

CHARNAUD® accepts no liability should garments not be laundered in strict accordance with the wash care instructions provided.
