SURVIVE-ARC® Shield Kit 14 cal CAT 2 grey visor, chin guard and blue cap bracket

SURVIVE-ARC® Shield Kit 14 cal CAT 2 grey visor, chin guard and blue cap bracket

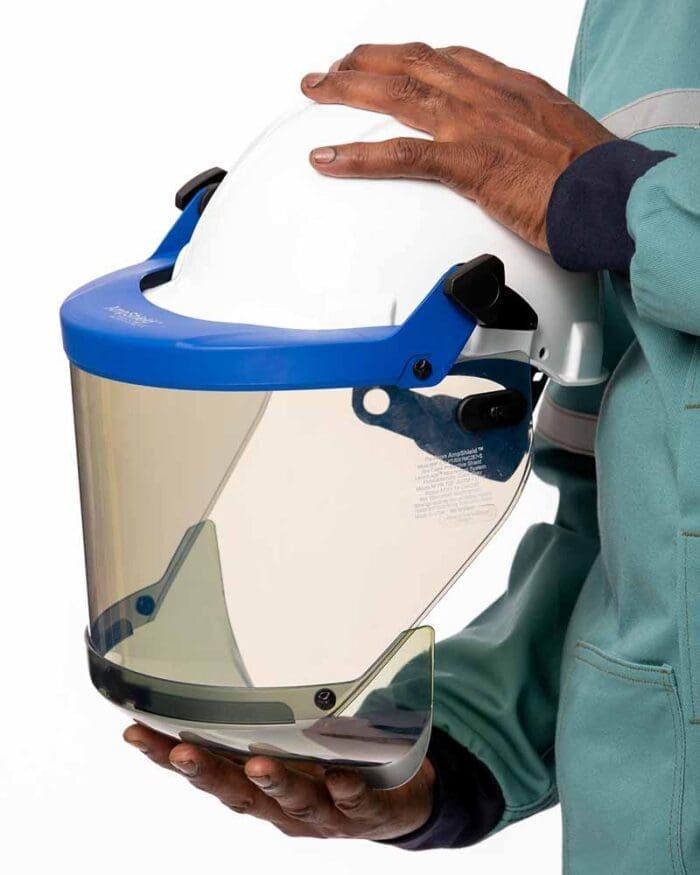

SURVIVE-ARC® TRANSPARENT HEADGEAR KIT, 14CAL/CM², CAT 2



Description

Headgear kit, ATPV 14 cal/cm² CAT 2.

Consisting of three components that must be used together as a KIT to achieve the arc rating indicated.
Transparent face shield with improved optical correctness, bracket and a chin protector.

Options:
• Dielectric hard hat not included.
• Cap bracket available for slotted hard hats and universal bracket for slotted and non-slotted hard hats.

STYLE NUMBER: SAH02A

COLOUR:

Face shield: Grey.
Chin protector: Grey.
Bracket: Blue

SIZE: One size fits all.

MATERIALS:

Face shield/chin protector: Plastic/Chemical alloy (patented).
Slotted cap bracket: Nylon.

APPLICATION: Arc flash protective work wear for the electrical industry.

HAZARD ASSESSMENTS:
Thermal effects from electric arc flash, flames and flash fires.

FEATURES:

The face shield offers improved optical correctness, anti-fog technology.
Excellent field of view and ergonomic assembly that is convenient for the user.
Anti-fog both sides.
The chin protector provides additional protection for the chin and neck areas.
Dielectric and high temperature resistant.

STANDARDS Fabric and/or garment:
ANSI Z87.1.
GS-ET-29 (Class 2).
ASTM F2178.
NFPA 70E.

WARNING: READ BEFORE USING THIS PRODUCT

Arc flash clothing is intended to provide protection from the thermal effects of arc flash and this product must be used as part of an appropriate set of PPC and PPE to protect against the hazards of arc flash. This product complies with standards that are intended to protect against arc flash in most situations that arise during normal use. There may be exceptional cases in which even the best protection is not enough to prevent the harm caused by arc flash or the related effects, although the product meets statutory and industry specifications, the use of this product does not guarantee that the product will provide complete protection in those exceptional cases. If you are in doubt or do not fully understand these limitations, contact the manufacturer for full information.

¹ATPV: Arc Thermal Performance Value. The higher the value, the more insulated the user is from second degree burn.

2HAF: Heat Attenuation Factor. The higher the HAF%, the more heat is blocked by the fabric.

Do not leave AMPShield® in direct sunlight for long periods of time. Do not place it next to heat source. Do not use if cracked or broken. Do not use if it has been in an arc flash. AMPShield® is made from high quality materials by leading manufacturing processes and designed for long term use (5 years) provided the relevant care and storage instructions have been followed.

DISCLAIMER

CHARNAUD® accepts no liability should garments not be laundered in strict accordance with the wash care instructions provided.
