SURVIVE-ARC® High energy goggle 45 cal/cm2 CAT 4

Home/ELECTRIC ARC FLASH PROTECTIVE WEAR/Accessories/SURVIVE-ARC® High energy goggle 45 cal/cm2 CAT 4
SURVIVE-ARC® High energy goggle 45 cal/cm2 CAT 4

SURVIVE-ARC® High energy goggle 45 cal/cm2 CAT 4

Application: Electrical industry, areas where any of the indicated hazards are a threat.

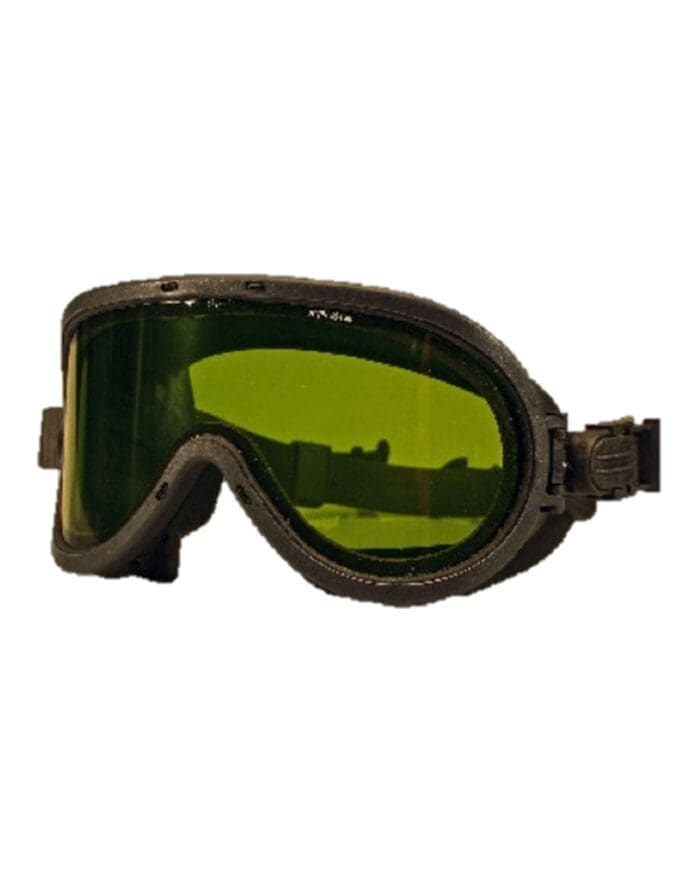

Survive-Arc® ArcGoggle, high energy, CAT 4, ATPV 45 cal/cm2. A primary protective ArcGoggle designed to specifically address the requirements of arc flash protection.


ColourBlack with black bezel
SizeUniversal adjustable
  • Lens: Optically correct dual layer lens. Outer polycarbonate lens is hard coated and the inner propionate lens is anti-fog coated. Nanotechnology design provides the highest level of arc protection and durability for the VLT.
  • Strap: Silicone, easily adjustable with gloves.
  • Frame: Silicone
Product StandardsNFPA 70E; ANSI Z87.1; ASTM F2178. ATPV: 45 cal/cm2
Hazard AssessmentsArc flash, heat, impact, splash, smoke and particles.
Product CommentsWARNING: READ BEFORE USING THIS PRODUCT The ArcGoggle is designed to be worn with an approved arc flash balaclava that meets or exceeds the hazard assessment: electrical arc flash as per the hazard assessment requirements listed in NFPA 70E: 2004. Use an appropriate helmet/hard hat to provide required impact protection. This product does not meet the face shield requirements of NFPA 70E:2004. Arc flash clothing is intended to provide protection from thermal effects of arc flash and this product must be used as part of an appropriate set of PPC and PPE to protect against the hazards of arc flash. This product complies with standards that are intended to protect against arc flash in most situations that arise in normal use. There may be exceptional cases in which even the best protection is not enough to prevent the harm caused by arc flash or the related effects and, although the product meets statutory and industry specifications, the use of this product does not guarantee that the product will provide complete protection in those exceptional cases. If you are in doubt or do not fully understand these limitations, contact the manufacturer for full information. The product may be returned to the supplier if you are not willing to accept a product that is subject to the limitations set out above. The normal life span of the lens is one (1) year of outdoor service and two(2) years of indoor service. The lens should be replaced timeously to ensure optimal performance and safety.

Product Features

  • The ArcGoggle in combination with an approved balaclava and hard hat/helmet is the only known system that provides an alternative to the use of “Bee Keeper” style hoods for electric arc safety, up to 45 cal/cm2.
  • Provides primary eye protection as per ANSI Z87.1 and replaces the safety glass requirement.
  • Compatible with cap style and full brim safety helmets/hard hats.
  • Fits over most prescription safety spectacles.
  • Product weight 204 gm.
